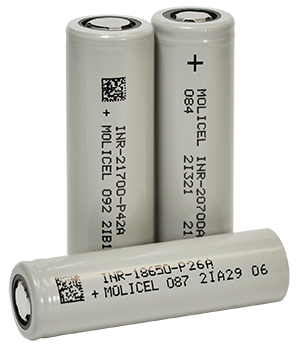

The Molicel P26A is one of the best cells out on the market today. This cell out performs even the all-time great VTC5A and is authorsied for the use in vape devices, among other devices.
Specifications
Rated Capacity: 2.6Ah (Typical), 2.5Ah (Minimum)
Rated Discharge: constant 0.52A discharge until 2.5V at 23C
Rated Charge: Limiting 2.6A and constant 4.2V charge for 1.5 hours or 50mA at 23C
Nominal Voltage: 3.6V
Shipping Voltage: >3.45V (approximate state of charge on arrival <30%)
Internal Resistance: ≤ 20mΩ (measured by AC impedance at 1kHz)
End of Charge Voltage: 4.20±0.05V
End of Discharge Voltage: 2.5V
Charging Time: approximately 90 minutes
Maximum Charging Current: 6A
Maximum Discharging Current: 35A (this is NOT continuous)
Operating Temperature:
Charging: 0~60C
Discharging: -40~60 oC
Storage Temperature: <35C, recommended <23C for long term storage
